Home > Manual > CPJexd – Steering Wheel Controls Car PC USB Interface > Hardware Setting > 6. Wiring of digital steering wheel controller > 6-3. VW(Volkswagen) ‘99-’04

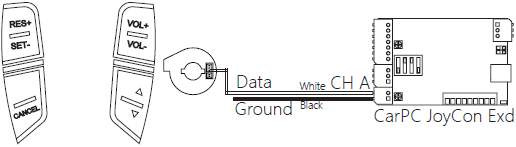

Connect Radio control Data to CH A. Turn off DIP switch 2 and 3.
