2. Configuration of Interface Manager

You are here

Home > Manual > CPJexd – Steering Wheel Controls Car PC USB Interface > BSG(Button Signal Generator) > 2. Configuration of Interface Manager

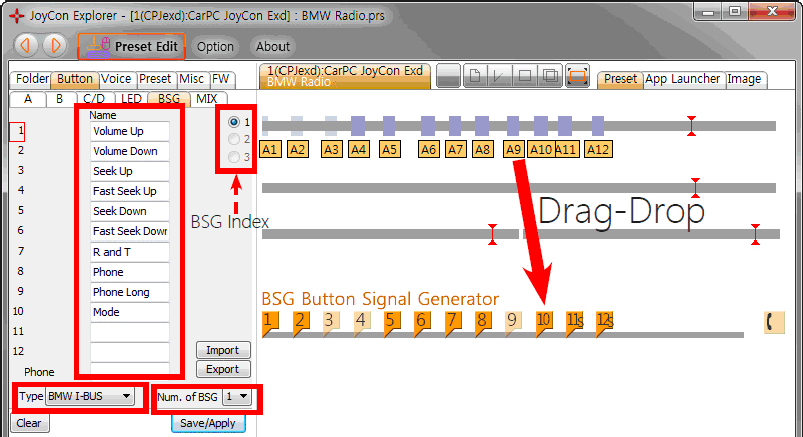

1. Choose the number of BSG device in Num. of BSG.
2. Choose the BSG index.
3. Choose the Type of BSG.
4. Put the Name of BSG button that is spoken when the Button is pressed.
5. Drag-drop buttons to the BSG buttons.
cpjexd-configuration-of-joycon-explorer

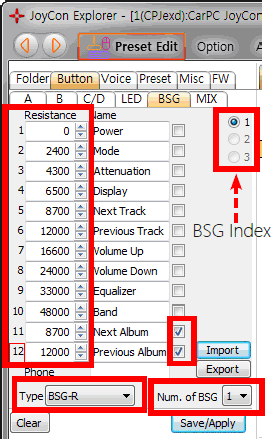

BSGr needs resistance values for each BSG button. The resistance unit is ohm(Ω).
Sony radio needs shift signal for Next/Previous button, check the checkbox for Next/Previous Album button.
BSG settings can be saved as or restored from a file(.bsg).
cpjexd-configuration-of-joycon-explorer_1
