1-3. BSGr(Button Signal Generator Resistive)

You are here

Home > Manual > CPJexd – Steering Wheel Controls Car PC USB Interface > BSG(Button Signal Generator) > 1. Wiring of BSG > 1-3. BSGr(Button Signal Generator Resistive)

BSGr is an external device connected through J2P BUS.
Connect CarPC JoyCon Exd’s HOST and J2P to BSGr’s HOST and J2P respectively.
Connect BSGr ‘s SIG+ to the steering wheel controller’s positive signal.
Connect BSGr ‘s SIG- to the steering wheel controller’s negative signal. If there is no steering wheel controller’s negative signal wire, connect SIG- to Ground.
(For more information of BSGr, see BSGr user guide or visit www.exinterface.com)

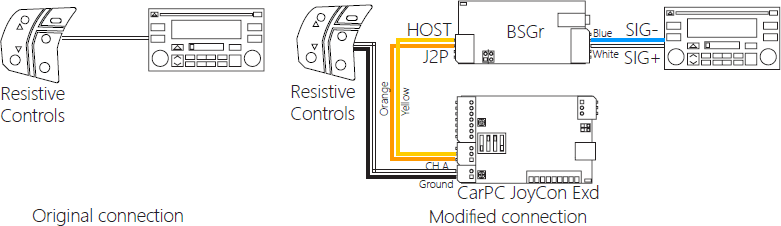

cpjexd-bsgr-wiring
