1-2. AUDI ‘99-’04(LIN) and VW(Volkswagen) ‘99-’04(LIN)

You are here

Home > Manual > CPJexd – Steering Wheel Controls Car PC USB Interface > BSG(Button Signal Generator) > 1. Wiring of BSG > 1-2. AUDI ‘99-’04(LIN) and VW(Volkswagen) ‘99-’04(LIN)

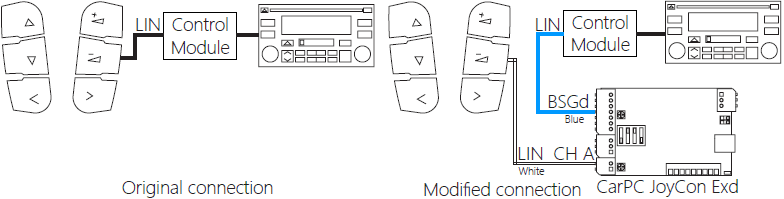

Connect the steering wheel controller‘s LIN wire to Channel A. Connect BSGd wire to the Radio instead of steering wheel controller‘s LIN wire.
cpjexd-audi-99-04lin-and-vw-99-04lin
