1-1. BMW IBUS controller

You are here

Home > Manual > CPJexd – Steering Wheel Controls Car PC USB Interface > BSG(Button Signal Generator) > 1. Wiring of BSG > 1-1. BMW IBUS controller

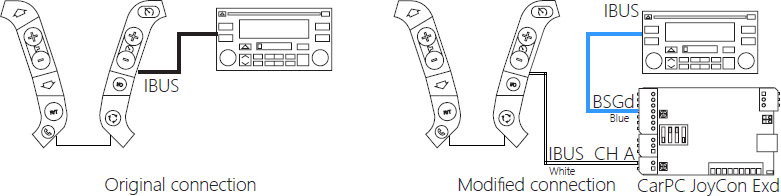

Connect the steering wheel controller’s IBUS wire to Channel A. Connect BSGd wire to the car stereo instead of steering wheel controller’s IBUS wire.
cpjexd-bsgi-ibus-controller-wiring
