External Power is required for JoyCon Exc to work when the PC power is off.

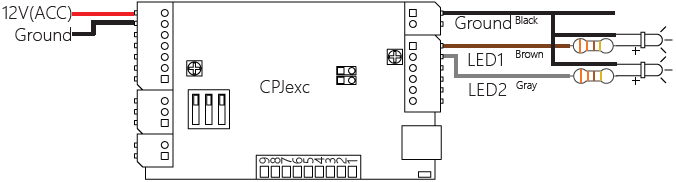

Connect ACC(12V) to 7 pin, connect chassis ground to 6 pin.
For external LED, a current limit resistor(usually 330ohm) must be connected in series.
Without the current limit resistor, LED burns out. Black wire is Ground. LED output is 5V.
