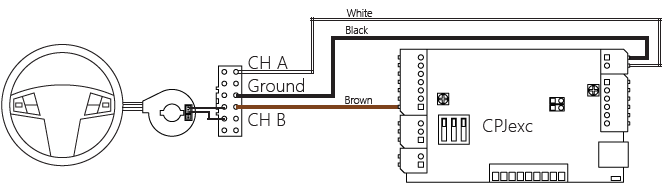

Connect CPJexc’s input channel(CH A, CH B, CH C, CH D)wire to the steering wheel control’s resistive signal wire.

Warning!! Do not connect signal and Ground wire reversely.

To configure Channel A as resistive, turn off DIP switch 1, turn on DIP switch 2

To configure Channel B as resistive, turn on DIP switch 3.

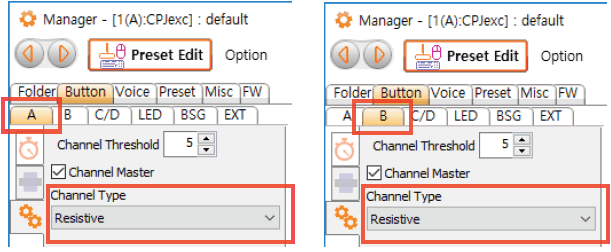

Choose [Button] -> [ A or B ]-> [Configure], select Channel Type as Resistive.

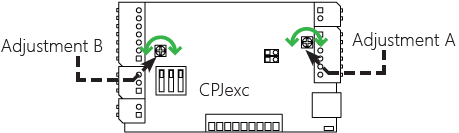

If the buttons in Manager are too close each other, tune the Adjustment A/B on the Board.
Default position of Adjustment A/B is center.
