5-2. Wiring of IBUS steering wheel controls

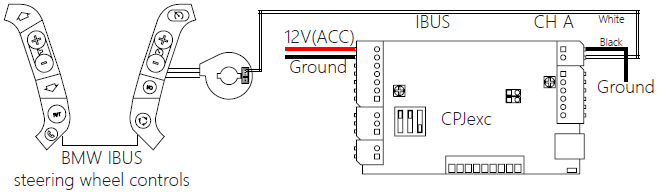

Connect IBUS wire to CH A.
Do not configure IBUS and Tempomat at the same time.
If the channel B is configured as BMW tempomat, IBUS message can be missed because reading
temponmat signal takes too long time.
*12V power(ACC) must be supplied to JoyCon Exc for BMW IBUS.

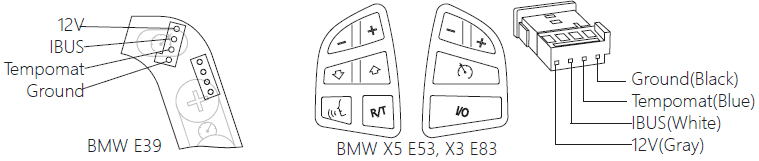

cpjexc-installation-of-bmw-ibus-steering-wheel-controls_2

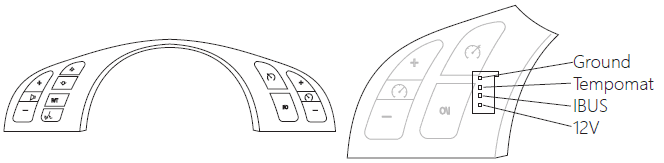

cpjexc-installation-of-bmw-ibus-steering-wheel-controls_3

Turn on DIP switch 1 and turn off switch 2 for IBUS on Channel A.
Turn the Adjustment A dial to the end of counterclockwise.
cpjexc-installation-of-bmw-ibus-steering-wheel-controls_4

Choose [Button] -> [ A ]-> [Configure], select Channel Type as BMW IBUS.
