15-3-1. Using Idle Message

You are here

Home > Manual > CPJexc – CAN IBUS Steering Wheel Controls Car PC USB Interface > 15. BSG (Button Signal Generator) for CAN BUS > 15-3. Idle Message > 15-3-1. Using Idle Message

Idle Message is needed for some car equipement(car radio) to be activated.
Idle message is sent on CAN BUS periodically by Duration(“Dur:”).

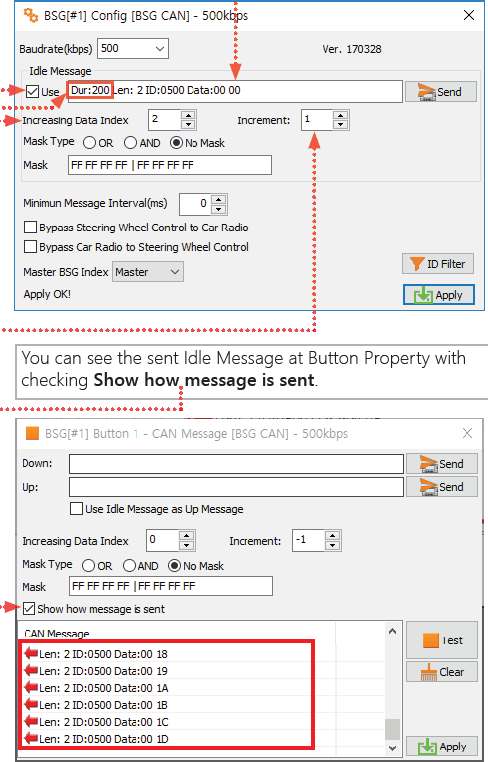

Check on box “Use”, and put an CAN message in the edit box(Drag&Drop or Copy&Paste).
“Dur:” is the interval of Idle Message.
“Dur:1” is 10ms. “Dur:100” is 1000ms, 1sec.
For example,
if the idle message is
Dur:100 Len: 2 ID:0500 Data:12 34
the message is sent every 1 second to the Radio though BSGc.
