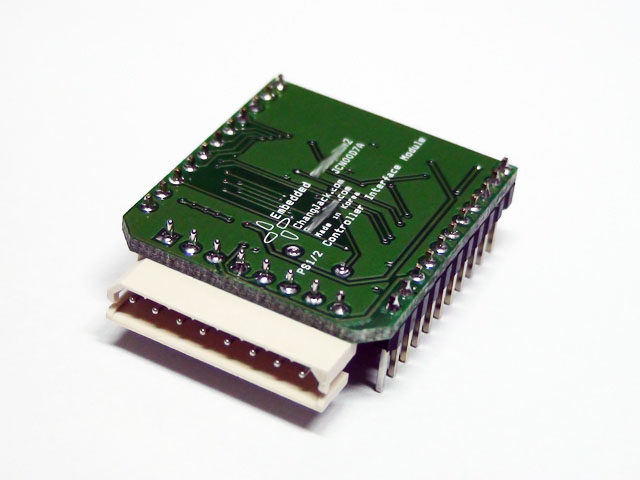

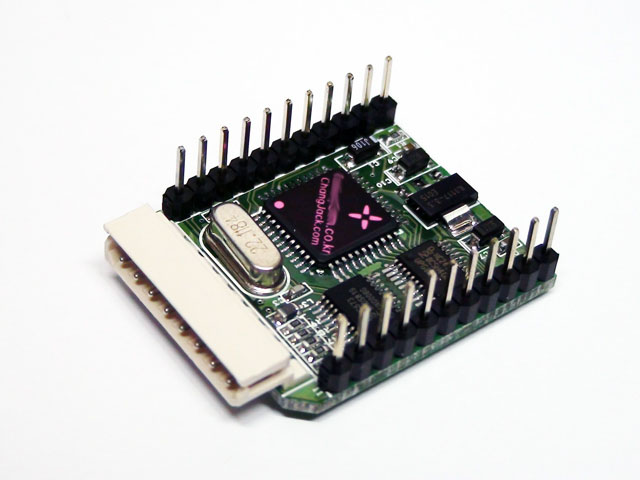

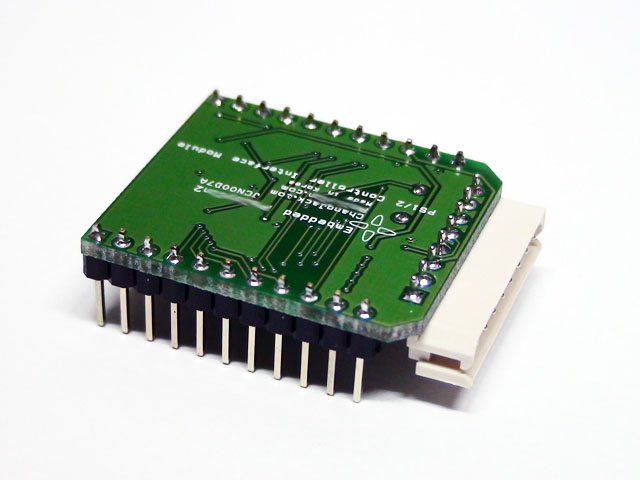

ePSC2 is DualShock2 embedded interface module.
You can easily embed DualShock2 in your application.

· DualShock2 and Playstation1/2 compatible contoller interface module
· Parallel / UART IO mode selectable(115200bps, 57600bps selectable)
· Supports 256 resolution pressure sense buttons(12 buttons) of DualShock2
· Controls each vibration motor(big : 256 resolution small : 10 resolution)
· Scans DualShock2 60 times per sec
· Auto detects controller
· Outputs controller connection
· Outputs controller type(DualShock 1/2)
· Selectable between changed data report and continuous data report at UART mode
· 3-state 8bit bidirectional I/O port(can be connected directly to bus line)
· 5V power supply, 8~12V optional power for vibration

DualShock2 is ideal controller for industrial joystick.
DualShock2 is
low price
easy to replace
high quality
familiar to users

Parallel mode

UART mode

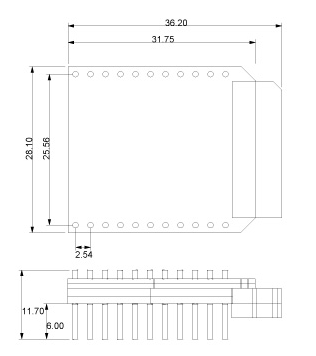

Small size

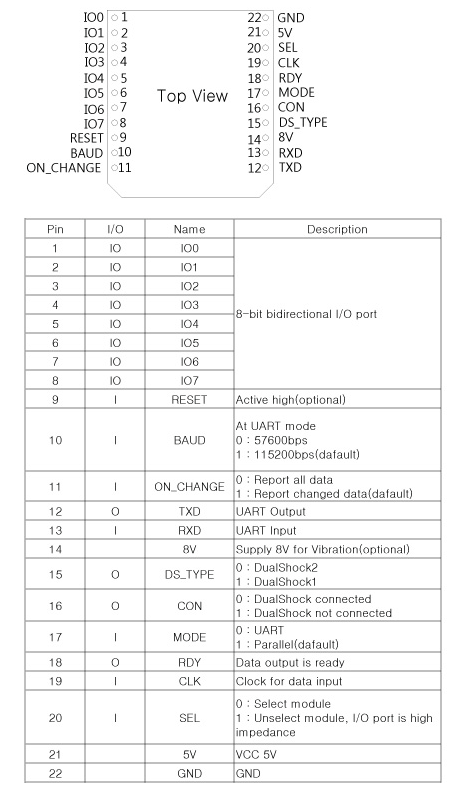

Pin Description

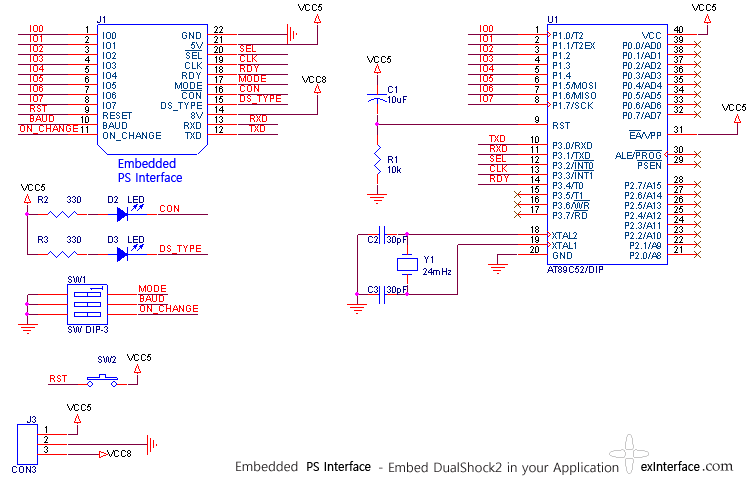

Example schematic of parallel mode

Example C code
https://www.exinterface.com/d/man/epsc/ePSC_Code_eng.pdf

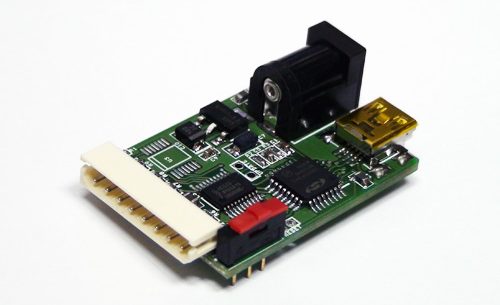

Example schematic of UART mode

User Guide
https://www.exinterface.com/d/man/epsc/ePSC2_UserGuide_Eng.pdf

DualShock2 connector is not included.
You can make DualShock2 connector with PS2 controller extension cable and 8Pin connector(included).
How to make DualShock2 connector

If you want modification of baud rate and output format and ect..,
contact kang@exinterface.com
