Toyota Corolla 2009-2010 has resistive steering wheel controls.
It can be connected directly to CarPC JoyCon EX.

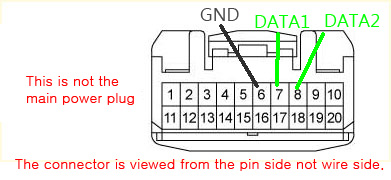

6(DATA1) -> DATA of CarPC JoyCon EX’s Channel A.
8(DATA2) -> DATA of CarPC JoyCon EX’s Channel B.
6(GND) -> GND of CarPC JoyCon EX
Toyota Corolla 2009-2010 has resistive steering wheel controls.
It can be connected directly to CarPC JoyCon EX.
6(DATA1) -> DATA of CarPC JoyCon EX’s Channel A.
8(DATA2) -> DATA of CarPC JoyCon EX’s Channel B.
6(GND) -> GND of CarPC JoyCon EX
Hi..!!!
I have never done this done before but I’m very much excited to do it myself…
I have japanese version of toyota corolla 2007.
Toyota fielder 2007. 1nz-fe. It is not pre-wired for cruise control nor it has any illuminating light in the speedometer as i checked whole speedometer with flashlight.
But i want to install cruise control in my car now. I have bought the wiring, switch, clock spring from aliexpress.com.
Now i need to know that where i have to insert the cruise control’s wire pin in my car’s ECU.
I hope & believe you could guide me.
I shall highly appreciate.
Hello
This information is not for retrofit the cruise control at ECU but for using the steering wheel control buttons at Car PC.
As far as I know, the ECU must support cruise control.
It is not sure that the cruise control works by simply wiring the cruise control buttons at ECU.
Thank you
