[CPJex]Fiat GrandePunto

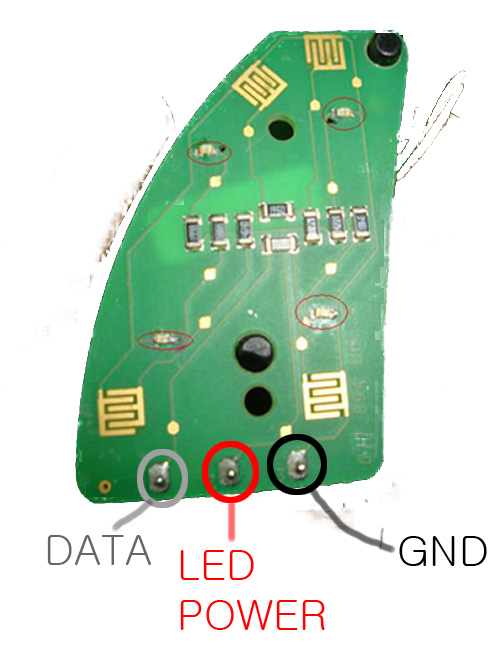

Fiat GrandePunto has resistive steering wheel remote controls.
It can be connected directly to CarPC JoyCon EX.

1283643744_42

1283643767_37

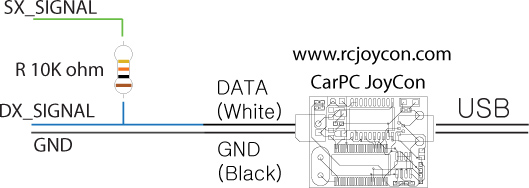

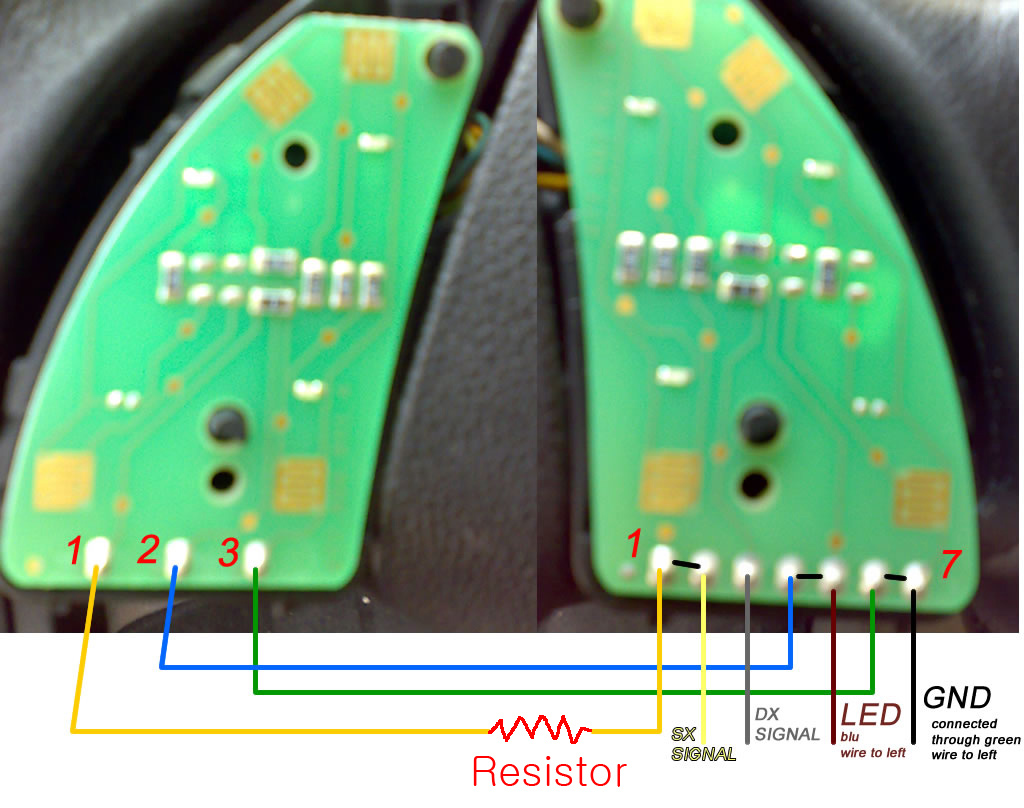

DX_SIGNAL(left) and SX_SIGNAL(right) resistance value is duplicated, so a resistor is needed to avoid duplication.

1283643774_4

If you use CarPC JoyCon EX, you don’t need a resistor to avoid duplication.
SX_SIGNAL -> DATA of CarPC JoyCon EX channel A
DX_SIGNAL -> DATA of CarPC JoyCon EX channel B
GND -> GND of CarPC JoyCon EX
